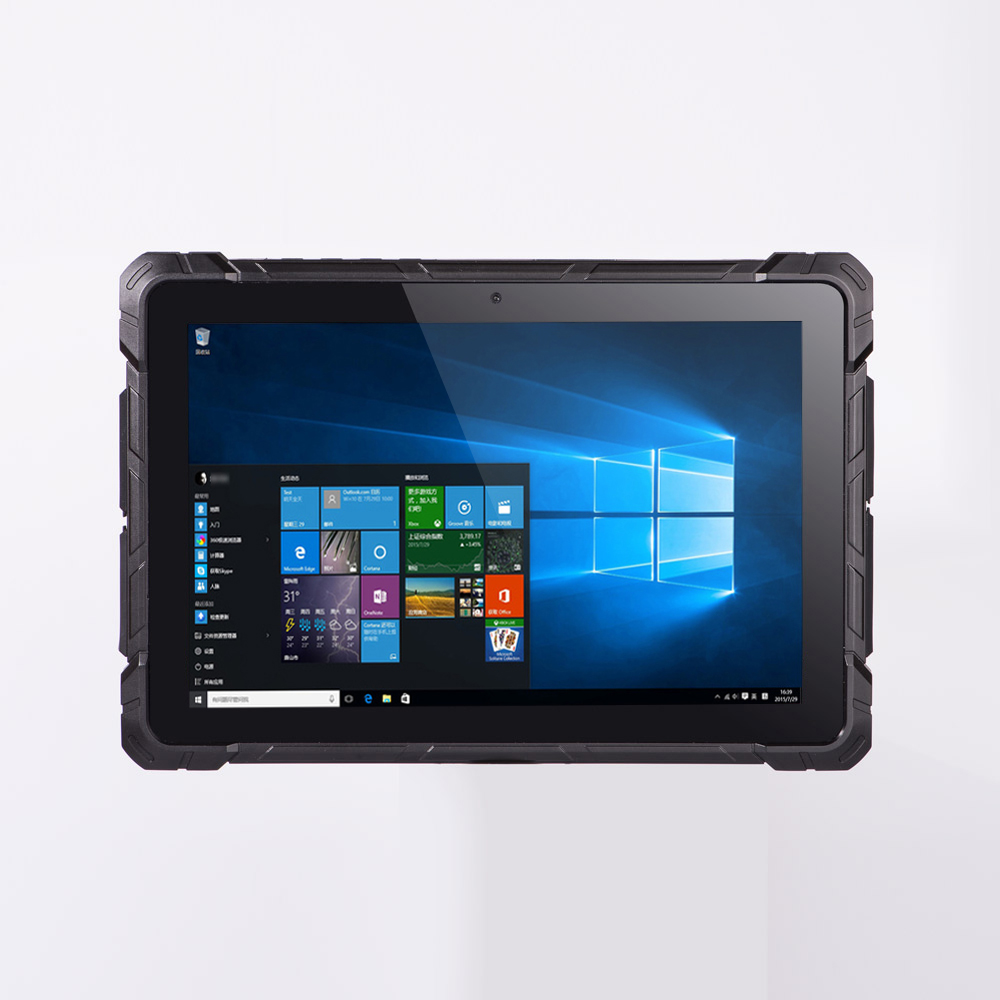

Hongruitu intelligent 10.1-inch three defense tablet is a 10.1-inch multifunctional military reinforced tablet, which can provide solid protection and high elasticity in various industrial environment
Hongruitu intelligent 10.1-inch three defense tablet is a 10.1-inch multifunctional military reinforced tablet, which can provide solid protection and high elasticity in various industrial environments, and can be used in various heavyweight machines and equipment. The design of z8350-f7 extends the service life and enhances the reliability. It can withstand the drop of 1.2m height and soak in 1m deep water without causing damage to the fuselage. Its built-in 12000mah high-capacity battery makes it a necessary computer for real outdoor exploration and special operations. With its various I / O ports and optional integrated barcode reader, it has become a general mobile HMI for logistics and factory automation.
| Key Features | IP67, 10.1" IPS + Z8350 + 4GB +64GB + WiFi 2.4G&5G Dual band + 1000Mbps + HDMI1.4 + RS-232(DB9)+ USB3.0 | |||||
| System Physical Standard Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Product Form | Form Factor | IP67 Rugged Tablet PC | ||||
| Dimensions | 280×184×26.5mm | |||||
| Weight | 1.2KG | |||||
| LCD | Screen Size | 10.1" | ||||
| Screen Resolution | 1200×1920 (IPS+FHD+300ANSI) (Standrd) | |||||
| 800×1280 (IPS+HD+500ANSI) (Optional, For MOQ order) | ||||||
| TP | Touch Module | G+G Multi-Touch | ||||
| Battery | Type | Rechargeable lithium polymer | ||||
| Capacity | 12000mAh/3.7V | |||||
| Working Time | Over 8 hours (FHD local video display) | |||||
| System Hardware Configuration: | ||||||
| Type | Details | Descriptions | ||||
| CPU | Type | Intel Cherry Trail x5-Z8350 Quad-Core | ||||
| Speed | 1.44GHz ~ 1.92GHz | |||||
| GPU | Type | Intel HD Graphics Gen8 | ||||
| Memory | Capacity | 4GB | ||||
| Storage | eMMC | 64GB | ||||
| SSD | / | |||||
| SATA 2.5“ HDD | / | |||||
| Camera | Front | 2M | ||||
| Rear | 5M | |||||
| Speaker | Built-in | 8Ω/1W with water proof | ||||
| Micphone | Built-in | Yes | ||||
| G-sensor | Built-in | Yes | ||||
| Network Connections: | ||||||
| Type | Details | Descriptions | ||||
| WIFI | WIFI Module: Broadcom AP6255/AP6256 | WIFI 802.11ac/b/g/n 2.4G&5Ghz Dual-band | ||||
| Bluetooth | BT Module: Broadcom AP6255/AP6256 | Bluetooth4.0 | ||||
| 3G/4G LTE | Optional | Optional with external small PCBA | ||||
| QR code Scanners | Optional | Optional | ||||
| NFC | Optional | Optional | ||||
| GPS | BD2/GPS | Optional | ||||
| Fingerprinter | Capacitive fingerprint sensor | Optional | ||||
| Ethernet Network | RJ-45 | 1000Mbps Gigabit Lan | ||||

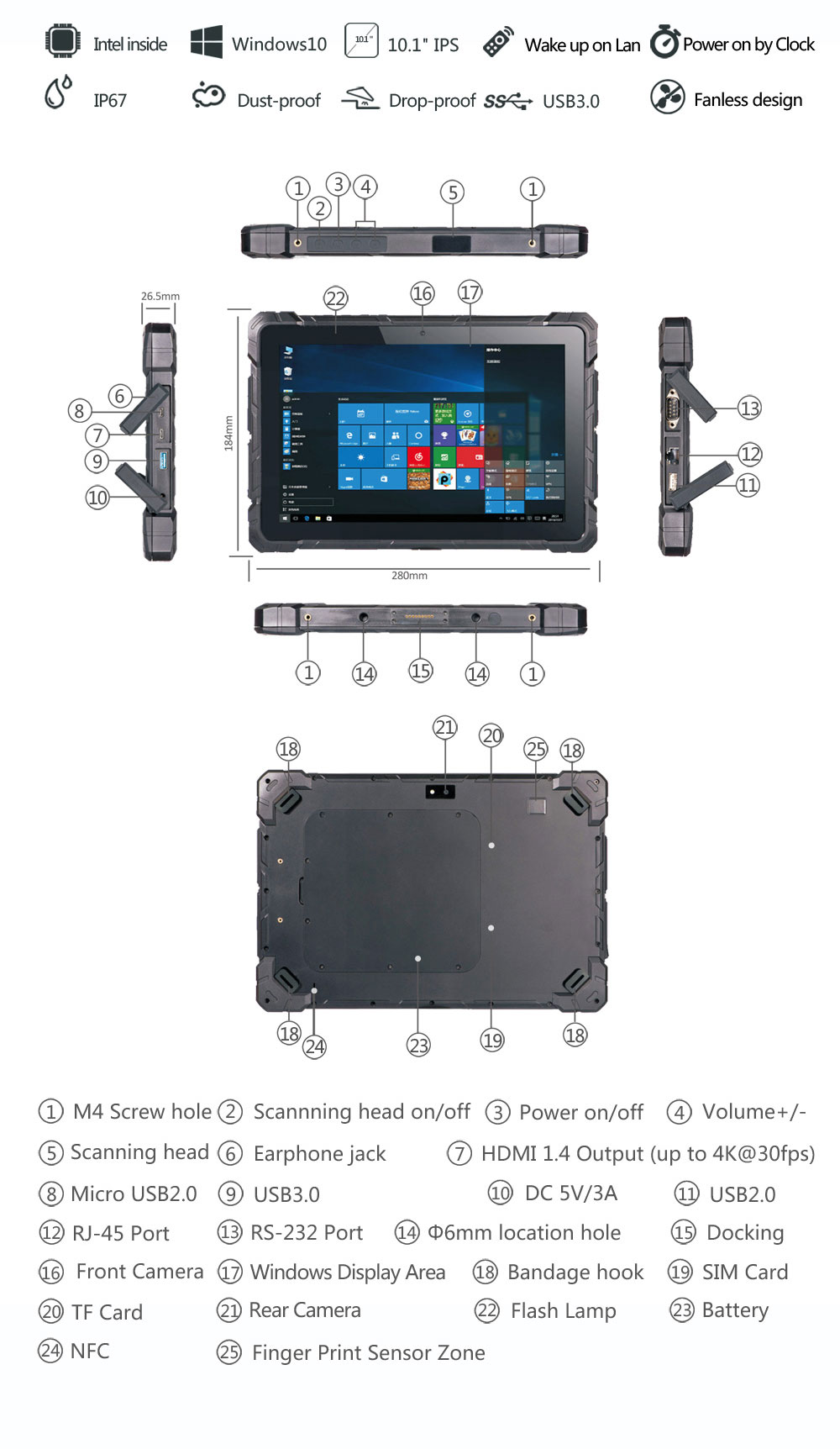

| Interface Configuration: | ||||||
| Type | Details | Descriptions | ||||
| USB Interface | USB3.0 | ×1pc | ||||
| USB2.0 | ×2pcs (USB2.0 TypeA×1 + Micro USB2.0×1) | |||||
| SD / TF Card reader | TF Card reader | ×1pc (up to 128GB) | ||||
| SIM Card Slot | SIM Slot for 3G/4G LTE | Optional | ||||
| Audio Jack | 3.5mm standard | ×1pc | ||||
| HDMI | Micro HDMI 1.4 | ×1pc | ||||
| Video output through HDMI | Up to 4K | |||||
| COM Port | DB9 (RS232) | ×1pc (External small PCBA) | ||||
| Button Switch: | ||||||
| Type | Details | Descriptions | ||||
| Power | On/Off | ×1pc | ||||
| Volume | Down/UP | ×1pc | ||||
| CMOS Reset | Reset by Short Press | / | ||||
| Main Accessories: | ||||||
| Type | Details | Descriptions | ||||
| Power adapter | DC 5V/3A | ×1pc | ||||
| User's Manual | User's Manual | ×1pc | ||||
| Handle Straps | Optional | Optional | ||||
| Extension Docking | USB2.0×1pc ; DC IN × 1pc | Optional | ||||
| Software Configuration: | ||||||
| Type | Details | Descriptions | ||||
| Wake up on Lan | Wake up on Lan by RJ45 | / | ||||
| PXE | Preboot Execution Environment | / | ||||
| Operating System | Windows 10 | Optional | ||||
| Linux | Test by end user | |||||
| Environment: | ||||||
| Temperature | Operation Temperature | -10oC ~ 55oC (1080p or 4K local video display) | ||||
| Storage Temperature | -20oC ~ 70oC (Restore to Operation Temperature 2hr before use) | |||||
| Humidity | Oprating Humidity | 35% ~ 80% relative humidity, Non-condensing | ||||
| Storage Humidity | 20% ~ 93% relative humidity, Non-condensing | |||||
| Certification: | ||||||
| IP67 | IP67 Certification | Yes | ||||
| Other | Other | Optional | ||||
